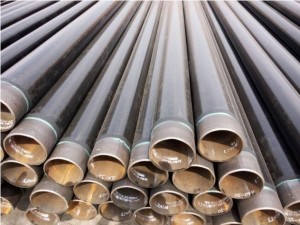

| NOMINAL Bore NB | YNTERNE DIA (D) | PTFE Liner thickness (T) | flange ET | FLANGEHOLE DIA | Raised FACE DIA (R / M) | MAXI. LINGTE | PIPE ANNEXE | ||
| (MM) | (INCHES) | (+1 MM) | (MM) | (MM) | (MM) | (MM) | (MM) | ||
| 25 | 1 | 19.5 | 3.3 | 79.4 | 15.9 | 51 | 3000 | 40 | |
| 40 | 1.5 | 33,8 | 3.3 | 98.4 | 15.9 | 73 | 3000 | 40 | |
| 50 | 2 | 45.4 | 3.3 | 120.6 | 19.0 | 92 | 3000 | 40 | |
| 80 | 3 | 70.8 | 3.3 | 152.4 | 19.0 | 127 | 3000 | 40 | |
| 100 | 4 | 95.2 | 3.8 | 190,5 | 19.0 | 157 | 3000 | 40 | |
| 150 | 6 | 145.1 | 4.5 | 241,3 | 22.2 | 216 | 3000 | 40 | |
| 200 | 8 | 197.4 | 5.0 | 298,4 | 22.2 | 270 | 3000 | 30 | |
| 250 | 10 | 249,3 | 6.0 | 362,0 | 25,4 | 324 | 3000 | 30 | |
| 300 | 12 | 300.1 | 6.0 | 431,8 | 25,4 | 381 | 3000 | 30 | |
HOUSING materiaal
- Pipe: 1. Nahtlose Carbon Steel ASTM A 106 Gr.B.Sch-40
2. ASTM A 312 TP 304, Sch-40 - Flanges: 1. Made út IS 2062 Platen / ASTM A 105
2. ASTM A 351 Gr.CF 8 - Liner: PTFE neffens ASTM D 1457
OPSJES
- Pipe: Jacketed spool pipe kin levere wurde op fersyk
- Flanges: DIN PN 10/16, BS 10, ASME 300, Mingde
- Extras: earthing Studs / Lugs, Vent Tafoegings
- Materiaal: Stainless Steel
- Liner: HDPE / PP
NOAT
Special swiere plicht PTFE Liners beskikber foar folsleine fakuüm ôfleit. Details kinne wurde jûn op fersyk. Oare flange Drilling like DIN 2632/2633, BS 10 tabel D, E of F binne ek beskikber op oanfraach. Tolerânsje: ± 3,5 mm (0 oant 1mtr.) En ± 5.0mm (1 oant 3 MTR.) Clear ID for HDPE / PP omseame Pipes (DN / ID): 25/18, 40/32, 50 / 42,65 / 57, 80/67.
TEST & ynspeksje DATA
Resins binne conforming oan 'e easken fan' ASTM F 1545-97 (2003)
- Hydraulic Test: 20 Kg / Cm 2 After lining
- Spark Test: 15 KV DC After lining
