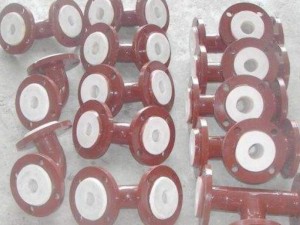

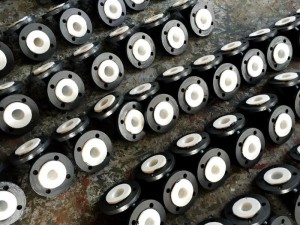

PTFE lined spool customized as per drawing supplied

Short Description:

Specifications:Nominal Diameter (mm/in. ): DN15-DN600 (NPS 1/2-NPS 24)Operating temperature: -20-180 degreeOperating pressure: -0.09MPa-1.6MPa (-0.9bar-16bar)Pipe: Seamless steel.Flange: ASME B16.5 Class 150 Flange options: HG, GB, JB, JIS, BS, DIN, ANSI, ASTMSpecial pieces of specific or non standard size can be manufactured on request.Carbon steel 45/90degree ptfe lined elbowOperating temperature: -20-180Operating pressure: -0.09MPa-1.6MPaCarbon steel 45/90degree ptfe lined elbow1. Positive...

Payment Terms: L/C,D/A,D/P,T/T

Send email to us Download as PDF

Product Detail

Product Tags

Specifications:
Nominal Diameter (mm/in. ): DN15-DN600 (NPS 1/2-NPS 24)
Operating temperature: -20-180 degree
Operating pressure: -0.09MPa-1.6MPa (-0.9bar-16bar)
Pipe: Seamless steel.
Flange: ASME B16.5 Class 150 Flange options: HG, GB, JB, JIS, BS, DIN, ANSI, ASTM
Special pieces of specific or non standard size can be manufactured on request.

Carbon steel 45/90degree ptfe lined elbow
Operating temperature: -20-180
Operating pressure: -0.09MPa-1.6MPa

Carbon steel 45/90degree ptfe lined elbow
1. Positive pressure: It shall adopt steel components according to different technical requirements, and the thickness of PTFE wall shall be over 2mm. If the temperature is less than 100 degree, the production length shall be less than 6m; And if the temperature exceeds 100 degree, the length shall be less than 3m.
2. Negative pressure: Design according to different ambient conditions of the users
