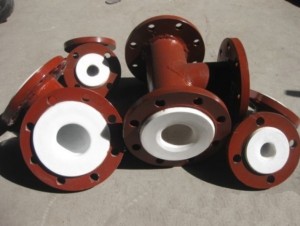

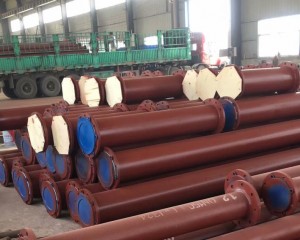

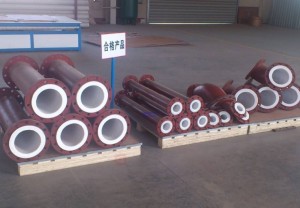

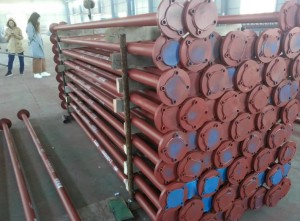

PTFE LINER PIPE SERIES PRODUCTS

Short Description:

NOMINAL BORE NB INTERNAL DIA (D) PTFE LINER THICKNESS (T) FLANGE PCD FLANGEHOLE DIA RAISED FACE DIA(R/F) MAXI. LENGTH PIPE SCHEDULE (MM) (INCHES) (+1 MM) (MM) (MM) (MM) (MM) (MM) 25 1 19.5 3.3 79.4 15.9 51 3000 40 40 1.5 33.8 3.3 98.4 15.9 73 3000 40 50 2 45.4 3.3 120.6 19.0 92 3000 40 80 3 70.8 3.3 152.4 19.0 127 3000 40 100 4 95.2 3.8 190.5 19.0 157 3000 40 150 6 145.1 4.5 241.3 22.2 216 3000 40 200 8 197.4 5.0 298.4 22.2 270 3000 30 250 10 249.3 6.0 362.0 25.4 324 300...


  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    NOMINAL BORE NB INTERNAL DIA (D) PTFE LINER THICKNESS (T) FLANGE PCD FLANGEHOLE DIA RAISED FACE DIA(R/F) MAXI. LENGTH PIPE SCHEDULE
    (MM) (INCHES) (+1 MM) (MM) (MM) (MM) (MM) (MM)
    25 1 19.5 3.3 79.4 15.9 51 3000 40
    40 1.5 33.8 3.3 98.4 15.9 73 3000 40
    50 2 45.4 3.3 120.6 19.0 92 3000 40
    80 3 70.8 3.3 152.4 19.0 127 3000 40
    100 4 95.2 3.8 190.5 19.0 157 3000 40
    150 6 145.1 4.5 241.3 22.2 216 3000 40
    200 8 197.4 5.0 298.4 22.2 270 3000 30
    250 10 249.3 6.0 362.0 25.4 324 3000 30
    300 12 300.1 6.0 431.8 25.4 381 3000 30

    HOUSING MATERIAL

    • Pipe : 1. Seamless Carbon Steel ASTM A 106 Gr.B.Sch-40
      2. ASTM A 312 TP 304,Sch-40
    • Flanges : 1. Made from IS 2062 Plates/ASTM A 105
      2. ASTM A 351 Gr.CF 8
    • Liner : PTFE in accordance with ASTM D 1457

    OPTIONS

    • Pipe : Jacketed Spool Pipe can be supplied on request
    • Flanges : DIN PN 10 / 16, BS 10, ASME 300, Mixed
    • Extras : Earthing Studs / Lugs, Vent Extensions
    • Material : Stainless Steel

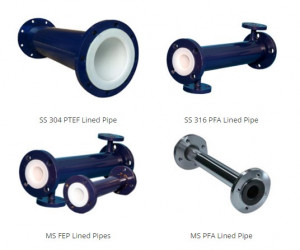

    • Liner : HDPE / PP

    NOTE

    Special heavy duty PTFE Liners available for full vacuum. Details can be provided on request. Other Flange Drilling like DIN 2632 / 2633, BS 10 Table D, E or F are also available on request. Tolerance : ± 3.5 mm ( 0 to 1mtr.) and ± 5.0mm (1 to 3 mtr.) Clear ID for HDPE/PP Lined Pipes (DN/ID ) : 25/18, 40/32, 50/42,65/57, 80/67.

    TEST & INSPECTION DATA

    Resins are conforming to the requirements of ASTM F 1545-97(2003)

    • Hydraulic Test : 20 Kg / Cm2 After Lining
    • Spark Test : 15 KV D.C After Lining
