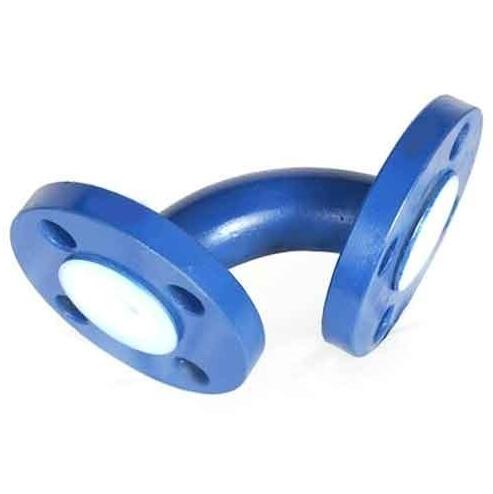

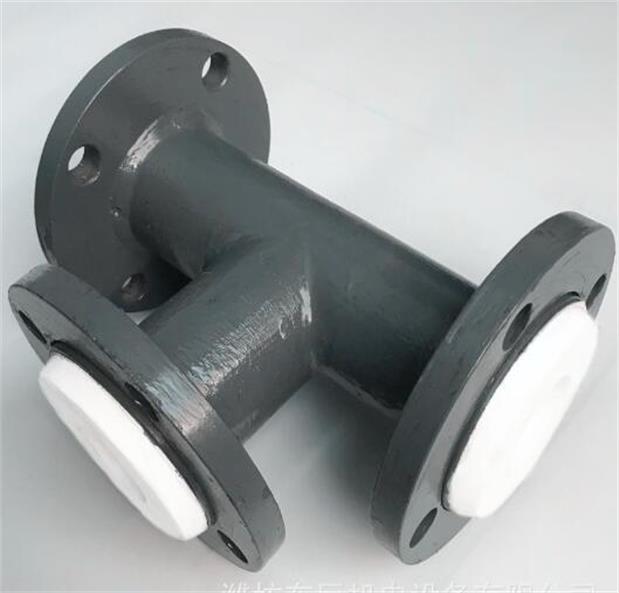

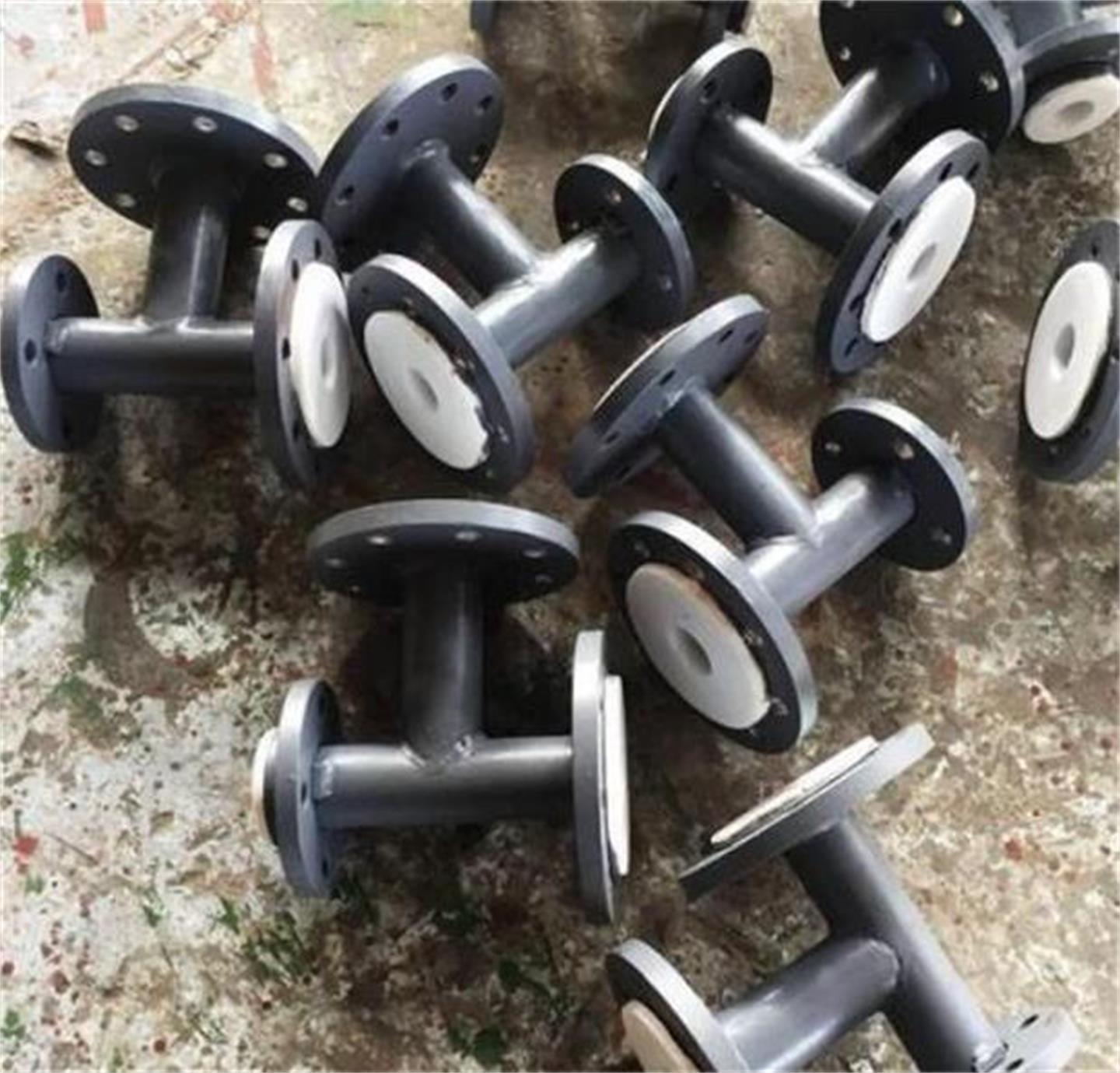

Anticorrosion lining fittings PTFE PFA Lined elbow , tee, reducer

Place of Origin:Hebei, China
Brand Name:TM
Model Number:1″–24″
Product name:ptfe lined fittings
Thickness:1-10mm
Length:as customized
Connect:flange
Customized:support customized according to drawing supplied
flange type:slip on . weld neck lap joint
Connect type:2 fixed flanges, 2 loose flanges, 1 fixed flange+1loose flange
Product Description
Product parameter:Lining Material: PFA, PTFE
Nominal diameter: DN25~DN300,1″~12″
Length: ≤6000mm (size≤DN150) ≤4000mm (size>DN150)

Temperature range: -29°C~180°C

Applicable medium:
Able to transport any concentration of acid, alkali, organic solvents, strong oxidant, toxic and volatile, flammable chemicals.
