Ptfe Lined Pipe Fittings

Short Description:

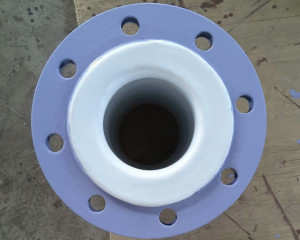

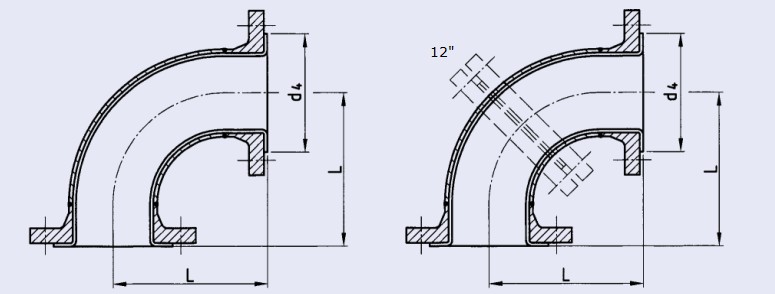

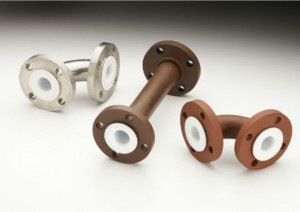

Elbows are manufactured with angles of 90°, 60°, 45° or 30°. Other angles are available on request. Please ask us for more information. 90° elbows are supplied with one fixed and one loose flange as standard. All 45° elbows come with fixed flanges. Alternatives are available on request. Products up to 10″ diam. are manufactured in one part. Items of 12″ diam. or above come in two parts. DN L PTFE PTFE Weight 90° 45° S d4 90° 45° Elbow Elbow mm mm mm mm mm app...

Payment Terms: L/C,D/A,D/P,T/T

Send email to us Download as PDF

Product Detail

Product Tags

Products up to 10″ diam. are manufactured in one part. Items of 12″ diam. or above come in two parts.

DN	L		PTFE	PTFE	Weight
	90°	45°	S	d4	90°	45°
	Elbow				Elbow
mm	mm	mm	mm	mm	approx. kg
1“	89	51*	3	51	2.5	2.4
1¼“	95	51	3	64	3.3	3
1½“	102	57	3	73	4.2	3.6
2“	114	64	3	92	6.4	5.4
2½“	127	76	3.5	105	8.8	7.9
3“	140	76	3.5	127	12	10
4“	165	102	4.5	157	17	15
5“	190	114	4.5	186	22	19
6“	203	127	5	216	31	22
8“	229	140	5	270	44	35
10“	279	165	5	324	65	61
12“	483	190	5.5	381	175	90
14“	546	190	5.5	413	239	99
16“	610	203	5.5	470	275	116
20“	737	241	6	584	448	167
24“	864	279	6	692	625	234

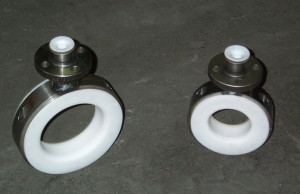

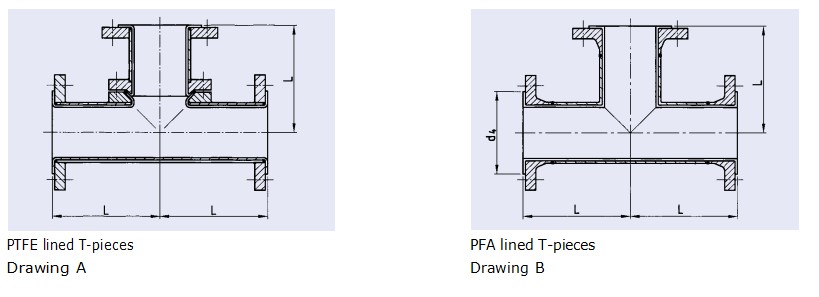

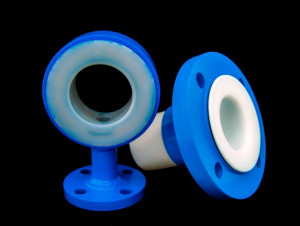

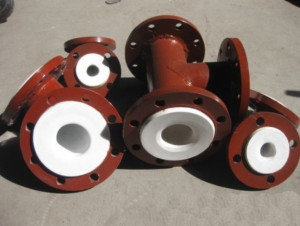

T-pieces up to 4″ diam. are available with either of two different linings. The PTFE lined variant is sup- plied with a high performance flange connection of well-proven design (see drawing A).

As an alternative, PFA-lined tees are available as shown on drawing B. PFA is a tetrafluorethylene-based copolymer with chemical and thermal properties comparable to those of PTFE. Fixed flanges are supplied as standard. Loose flan- ges are, however, also available on request.

DN1	DN2	L1	L2
DN1	DN2	L1	L2	Weight
mm	mm	mm	mm	approx. kg
1¼“	1“	95	95	5.3
1¼“	1“	102	102	6.1
2“	1½“	114	114	9.7
2“	1“	114	114	7.9
2½“	2“	127	127	15
2½“	1½“	127	127	14
3“	2“	140	140	18
3“	1½“	140	140	16
3“	1“	140	140	14
4“	3“	165	165	27
4“	2“	165	165	23
4“	1“	165	165	20
5“	4“	190	190	36
5“	3“	190	190	32
6“	4“	203	203	43
6“	3“	203	203	39
8“	6“	229	229	68
8“	4“	229	229	61
10“	8“	279	279	105
10“	6“	279	279	94
12“	10“	305	305	151
12“	8“	305	305	137
12“	6“	305	305	125
14“	12“	356	356	201
14“	10“	356	356	184
14“	8“	356	356	171
16“	14“	381	381	267
16“	12“	381	381	244
16“	10“	381	381	228
18“	16“	419	419	310
18“	14“	419	419	287
18“	12“	419	419	263
20“	16“	457	457	372
20“	14“	457	457	347
20“	12“	457	457	323
